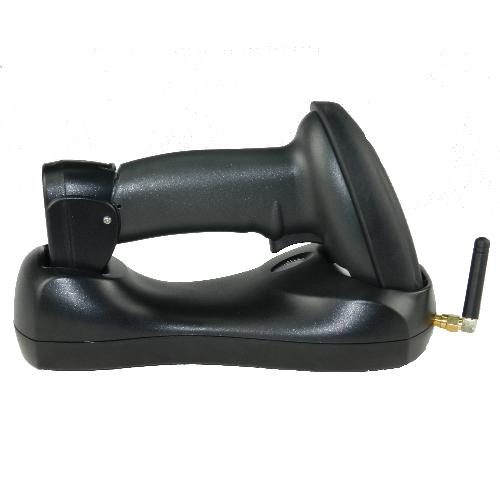

Đầu đọc mã vạch AS-433M

Optical

Light source:

650nm visible laser diode

Scan rate:

200scans/sec

Resolution (pcs0.9):

0.08mm (3mil)

Bit error rate:

1/1million

Depth of field:

10-420mm (pcs0.9 density 0.25)

Scan precision:

0.10-0.825mm (barcode)

Scan distance:

10-520mm

Elevation:

60°

Obliquity:

45°

Transmission rate:

RS232 Baud rate; 2400-38400

Scan width:

60mm at 30mm (distance to the object); 98mm at 100mm (distance to the object)

Interfaces supported:

USB

Laser safety:

IEC 60825-1 Standard Class 2 for laser products

Decode capability:

UPC-A, UPC-E, Industrial 2 of 5, Interleaved 2 of 5, EAN8, EAN 13, Code 128, EAN 128, Code39, Code 93, Codabar125, MSI/Plessey etc.

Operating Environment

Voltage:

5V

Working current:

120mA

Stand-by current:

30mA

Operating temperature:

-20° C-45° C

Storage temperature:

-20° C-45° C

Operating humidity:

5%-85%

Storage humidity:

5%-85%

Drop test:

100times/2m to concrete

Ambient Light Immunity:

Sunlight 3.000lux max

Dustproof and waterproof:

Compliant with the icc529 and ip42 standard

Electromagnetic Interference (EMI):

Compliant with the en50081.par1 standard

External Electromagnetic Interference Resistance:

Compliant with the en50082.par1 standard
