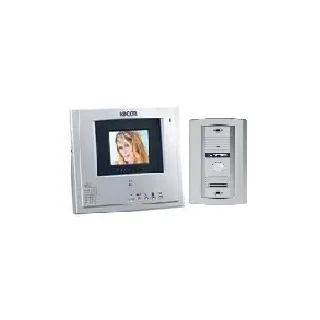

Chuông cửa Kocom KIV-212/KC-MC20

Power Source AC 220V
Power Consumption Stand by - 4.1W/ Max 24W
Monitor 10.2cm(4inch) B/W CRT
Camera : 4 wire (Polarity)
Power2wire , Voice 2wire , Video1wire , DATA1wire
Dimesion(mm) 237(W)×199(H)×39(D)
Camera connection KC-C60, KC-MC35
Door camera KC-MC20
Power:DC 12V ± 1V (Power from monitor)
Power consumption Max. 2.5W
Image format 270,000(EIA)/320,000(CCIR) pixels
Camera Color
TV system NTSC/PAL
Wiring:4wire
Lens:F : 2.0, f = 3.6mm
Body:Plastic
Mim. illumination:0.1 lux on the object (IR LED on)
Mount type:Flush mount
Dimension (mm) 40(W) x 120(H) x 22(D)
