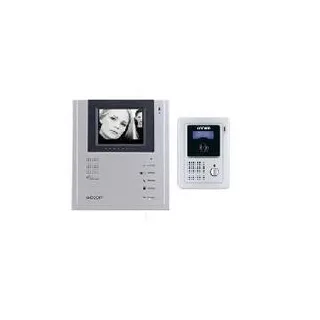

Chuông cửa Kocom KIV-102/KC-C63

video phone KIV-102
Power : AC 220V
Power Consumption Max - 19W /Stand by - 2W
Monitor 10.2cm(4inch) B/W CRT
Mount Type Surface mount
Monitoring Door Monitoring
Communication System Handsfree type
Camera : 4 wire (Polarity)
Dimesion(mm) 191(W)×217(H)×52(D)
Door camera KC-C63
Power:DC 12V ± 1V (Power from monitor)
Power consumption Max. 2.5W
Image format 270,000(EIA)/320,000(CCIR) pixels
Wiring:4wire
Lens:F : 2.0, f = 3.6mm
Camera B/W
TV system NTSC/PAL
Body:Plastic
Mim. illumination:0.1 lux on the object (IR LED on)
Mount type:Flush mount
Dimension(mm):95(W)×127(H)×34(D)
Camera Connection KIV-102, KIV-D102
