Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

TypeIP Carema - ONVIF 2.2 ParameterImage Sensor1/3" CMOS Digital Image Sensor(SONY) Pixels1080P / 720P minimum illumination0.01Lux S/N≥45db IR>10M IR-CutColor to BW:2Lux; BW to Color:6Lux Optical LensInterfaceM12 LensFixed Iris Lens Focal length3

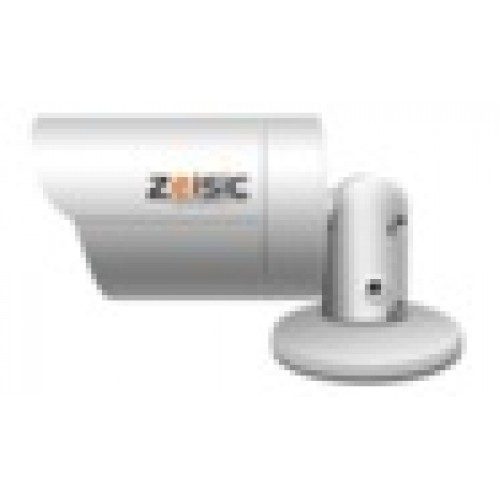

Type	IP Carema - ONVIF 2.2
Parameter	Image Sensor	1/3" CMOS Digital Image Sensor(SONY)
	Pixels	1080P / 720P
	minimum illumination	0.01Lux
	S/N	≥45db
	IR	>10M
	IR-Cut	Color to BW:2Lux; BW to Color:6Lux
Optical Lens	Interface	M12
	Lens	Fixed Iris Lens
	Focal length	3.6mm,6mm optional
Network	Network interface	RJ45 10M/100M
	Network Protocol	HTTP,TCP,ARP,RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,DDNS,PPPoE,IPv4/v6,SNMP,QoS,UPnP,NTP
	ONVIF	Supports
	Network Preview	Web server embedded, Support IE
	Domain name server	Supportzeisic,88110,reelink,3322, dyndns, no-ip, changeip, dnsexit domain name server as default value.
Video	Video encode	H.264 Baseline Profile/H.264 Main Profile
	Resolution	Main stream:720p @ 30fps; Sub stream:VGA/QVGA@ 30fps/720P @8fps
	Bitrate	Main stream:500Kbps～6000Kbps; Sub stream:159Kbps～1600Kbps
	CBR/VBR	Support
Alarm	NO
Alarm	NO
Others	Operation Temperature	-10℃--＋55℃
	Operation Humidity	0% - 90%
	Power supply	DC 12V / PON(power by NVR mainboard)
	Protection	IP66
	Power	<5w
	Dimension	unfolded: Φ60151.3MM; fold: Φ60113.2MM
