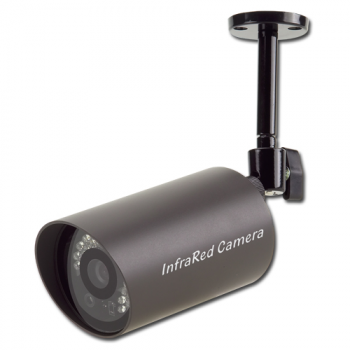

Camera quan sát YOKO RYK-2Q49L2

Model Name

RYK-2Q49L2/L3

Image Device

1/3" Color Sony Super HAD

Picture Elements

NTSC:510x492, PAL:500x582

Resolution

380 TVL

Min. Illumination

0.2 Lux / F 2.0 (Day), 0 Lux (IR on)

S/N Ratio

More than 48dB

Electronic Shutter

NTSC:1/60~1/100,000, PAL:1/50~1/110,000

Gamma

0.45

Lens Furnished

L2 model: Board Lens 3.6mm / F2.0 (option:4.3/6/8/12/16mm)
L3 model: Board Lens 6.0mm / F2.0 (option:8/12/16mm)

White Balance

Auto

Gain Control

Auto

Sync. System

Internal

Video Output

1 Vp-p / 75 Ohms

Infrared Luminary

L2 model: 24 pieces IR-LED
L3 model: 36 pieces IR-LED

Illuminate Distance

L2 model: 20M
L3 model: 30M

Wavelength

850 nm

Waterproofing Criterion

IP 66

Power Supply

DC12V¡Ó10% (option: AC24V, AC110~240V)

Power Consumption

L2 model: IR On:567mA max., IR Off:125mA max.
L3 model: IR On:692mA max., IR Off:125mA max.

Operating Temp.

-10¢XC ~ 50¢XC
