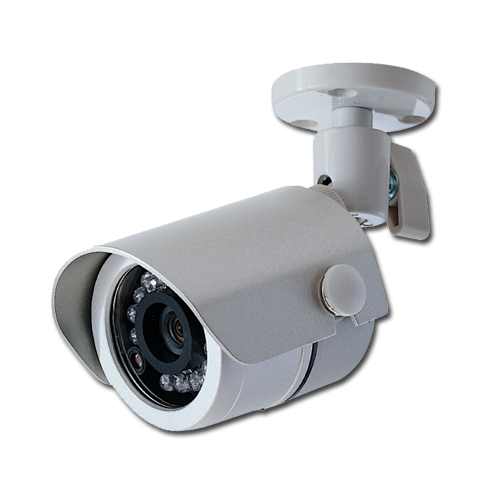

Camera quan sát YOKO RYK-2B47

Model Name

RYK-2B47

Image Device

1/4" Color Sony Super HAD

Picture Elements

NTSC:510x492, PAL:500x582

Resolution

380 TVL

Min. Illumination

0.5 Lux / F 2.0 (Day), 0 Lux (IR on)

S/N Ratio

More than 48dB

Electronic Shutter

NTSC:1/60~1/100,000, PAL:1/50~1/110,000

Gamma

0.45

Lens Furnished

Board Lens 3.6mm / F2.0 (option:4.3/6/8/12/16mm)

White Balance

Auto

Gain Control

Auto

Sync. System

Internal

Video Output

1 Vp-p / 75 Ohms

Audio Output

2 Vp-p / 50 Ohms (option)

Infrared Luminary

12 pieces IR-LED

Wavelength

850 nm

Illuminate Distance

10 M

Waterproofing Criterion

IP 67

Power Supply

DC12V±10%

Power Consumption

IR On: 292mA max., IR Off: 117mA max.

Operating Temp.

-10°C ~ 50°C
