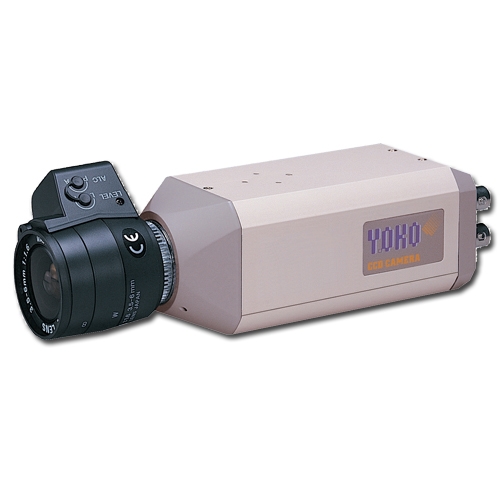

Camera quan sát YOKO RYK-213F

Model Name

RYK-213F/413F

Image Device

1/3" Color Sony Super HAD (Hi-Res.)

Picture Elements

NTSC:768x494, PAL:752x582

Resolution

550 TVL

Min. Illumination

0.2 Lux / F1.2

S/N Ratio

More than 48dB

Electronics Shutter

NTSC:1/60~1/100,000, PAL:1/50~1/110,000

Gamma

0.45

Iris Control

Video / DC Drive

Lens Mount

C / CS

White Balance

Auto

Gain Control

Auto

Back Light Comp.

On / Off

Sync. System

Internal

Video Output

1 Vp-p / 75 Ohms

Audio Output

2 Vp-p / 50 Ohms (option)

Power Supply

RYK-213F: DC12V±10%
RYK-413F: AC24V, AC110V, AC100~240V, DC12V/AC24V Dual (option)

Power Consumption

DC: 175mA max., AC: 3.2W max.

Operating Temp.

-10°C ~ 50°C
