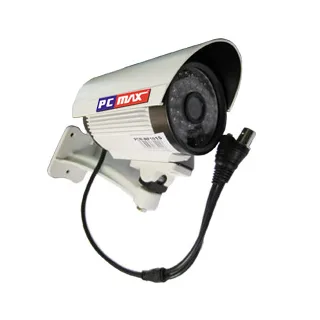

Camera quan sát PCMax PCM-WF101Sw

Model

PCM-WF101Sw

Filter

Double Layers Crystal

Sensor

1/4 inch Sony Japan Super HAD CCD ¢ò

Line

480TV Lines

Shell Color

White

Signal

PAL

NTSC

Pixels

795(H)¡Á596(V)  470K

811(H)¡Á508(V)  410K

Vertical

50Hz

60Hz

Horizontal

15.625KHz

15.734KHz

Illumination

0.1Lux (Color), 0.01Lux (B/W), 0Lux (IR ON)

Lens

f= 3.6 mm Lens Optional

IR LED

36pcs ¦µ8mm High Power IR LED

IR Distance

50 Meter

Scanning

2:1 Interlace

Synchronize

Internal

S/N

>= 50dB(AGC off, B/W)

E.S

1/50-1/120,000s

1/60-1/120,000s

W.B.C

Auto / Manual / Manual auto control

B.L.C

Low / Mid / High / Off

A.G.C

On / Off

Motion Detect

On / Off (1-4 area)

Mirror Fun

Horizontally

OSD Menu

N/A

Video Output

1Vp-p, 75¦¸

IP Rating

IP66

Bracket

3-Axis Anti Cutting Especial Bracket

Power

DC12V(DC10V¡«15V)

Consume

Max 1.2W/90mA

Dimension

152x104x96mm

Weight

1.5kg
