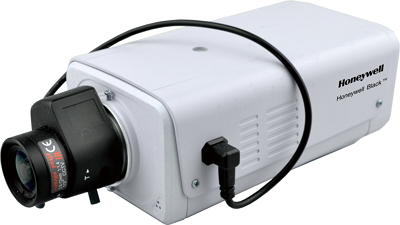

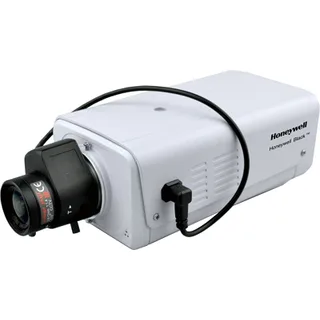

Camera Honeyewll CALIPB-1AP

Thông số kỹ thuật

Bảo hành	24 tháng

Đặc điểm nổi bật

ModelCALIPB-1ACALIPB-1APImage Sensor1/3" ultra-low illumination CMOSEffective Pixels1280 (H) x 960 (V)Minimum IlluminationColor: 0.01Lux @ (F1.2, AGC ON) B/W: 0.001Lux @ (F1.2, AGC ON)Shutter SpeedAuto: 1/50 (1/60) sec, 1/120 sec, 1/250 sec, 1/500

Model	CALIPB-1A	CALIPB-1AP
Image Sensor	1/3" ultra-low illumination CMOS
Effective Pixels	1280 (H) x 960 (V)
Minimum Illumination	Color: 0.01Lux @ (F1.2, AGC ON) B/W: 0.001Lux @ (F1.2, AGC ON)
Shutter Speed	Auto: 1/50 (1/60) sec, 1/120 sec, 1/250 sec, 1/500 sec, 1/1000 sec, 1/2000 sec, 1/4000 sec, 1/10,000 sec (millisecond adjustable)
Lens Mount	C/CS interface
Lens	DC drive
DWDR	ON/OFF
Day & Night	TDN, IR cut removable
Day & Night mode	Auto, Color, Black & White
BLC	ON/OFF
Auto Gain Control	ON/OFF 0~100 adjustable
Slow Shutter	None, Low, Medium, High
NT Level (DNR)	Day / Night, 0~5 adjustable
Image Set	Brightness, Contrast, Saturation, Hue can be customized through CMS client and IE browser
OSD Display	Time title, Channel title
Video Compression	H.264 High Profile dual-stream
Image Resolution & Frame Rate	Main Stream: 50Hz: 25fps (720P: 1280 x 720), (1.3M: 1280 x 960) 60Hz: 30fps (720P: 1280 x 720), (1.3M: 1280 x 960) Sub-Stream: 50Hz: 25fps (D1: 704 x 576), (CIF: 352 x 288) 60Hz: 30fps (D1: 704 x 576), (CIF: 352 x 288)
Bite Ratet	H.264: 32K-6Mbps Image resolution lowest / lower / general / high / higher / highest selectable
Bite Rate Type	CBR / VBR
Audio Compression	G.711a
Network Interface Protocol	ONVIF 2.0
Support Protocol	TCP/IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, NTP (HTTPS, SIP, 802.1x, IPv6 )
Browser	IE 6.0 to IE 11.0
Alarm Trigger	I/O trigger, video motion, video blind, video loss, intelligent analysis (line crossing), device disconnect
Motion Detection	396 zones
Privacy Masking (Region Cover)	4 zones
Max. User Access	5 users
Audio Input / Output	1 CH 3.5mm jack port
Ethernet	1 RJ45 10/100Mbps self-adaptive Ethernet interface
Connector	1 RS-485 Interface
Alarm Input / Output	1 CH Input, 2CH Output Video Output
Video Output	1Vp-p Composite output (75Ω/BNC)
Storage	Network storage / SD card slot (max 32GB)
USB Port	1 USB Port for Wi-Fi / 3G Extension Reset Button
Reset Button	YES
CMS	CAL-CMS200
Mobile View APP	CALNVRView for iPhone, iPad, Android
Operating Temperature	-10℃~60℃,
Operating Humidity	Less than 90% ( non-condensing)
Power Supply	DC12V±10%
Power Consumption	3W (excluding external loading)
Power over Ethernet (PoE)	N/A	IEEE 802.3af
Dimensions	144(D) x 56.5(H) x 78.5(W) mm
Weight	500g
Certificate	CE, FCC, C-tick
