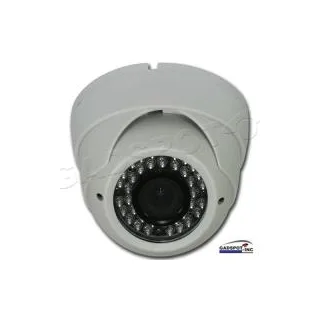

Camera Gadspot GS7106

Model:

GS7106

Pick-Up Device:

1/3" Sony Effio CCD Image Sensor

Image Signal Process:

Digital Signal Processor

System of Signal:

NTSC / PAL

Number of Pixels:

NTSC: 1020(H)x508(V) / PAL: 1020(H)x596(V)

Picture Elements:

NTSC: 520K Approx. / PAL: 610K Approx.

Horizontal Resolution:

750TV Lines

Minimum Illumination:

0 Lux (with IR-LED on)

Lens:

4~9 mm Varifocal, 2 Megapixel Lens

Application:

Indoor / Outdoor

Auto Electronic Shutter:

Auto: 1/60(50)s~1/100,000sec; Manual: 1/60(50)s, FL1/120(100)s, 1/250s, 1/500s, 1/1,000s, 1/2,000s, 1/4,000s, 1/10,000s

OSD Menu:

Build-in Multi-layers semi-opacity Menu Setting

WDR:

WDR real wide dynamic rang compression

Digital Slow Shutter:

X2 ~ X256

Noise Reduction:

2D/3D-NR

Auto Gain Control:

ON/OFF

Back Light Comp.:

HLC / BLC / OFF

White Balance:

AWB / ATW

Digital Demist Process:

ON/OFF

Digital Zoom:

Zoom 256X

Digital Day & Night Mode:

On (Black & White)/Auto/External input/off (color)

Privacy Masking:

ON/OFF (8 Editable area)

ICR:

Yes

Blemish Compensation:

Static & Dynamic (4096 points)

Face Tracking Auto Zoom:

ON/OFF

Face Detection:

ON/OFF

Face Metering Compensation:

ON/OFF

Motion Detection:

ON/OFF

Flash Suppression Function:

ON/OFF

Picture Adjustment:

Brightness / Contract / Saturation / Sharpness / Hue

S/N Ratio:

Max. 52dB (AGC off)

Language:

Multi-Language

Operation Temperature:

-5°C ~ +40°C (23°F ~ 104°F)

Sync System:

Internal

Scanning System:

2 : 1 Interlace

Video Output:

1Vpp/75Ω

Power Source Supply:

12VDC(+/-10%)

Weight:

970 g

Dimension:

φ150 x 102.5 mm

IR LEDs:

30pcs, φ5mm

Color:

White

Made in:

Taiwan
