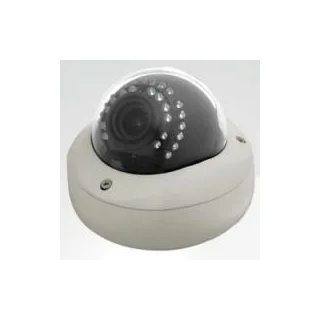

Camera Gadspot GS7006

Pick-Up Device

1/3" Exview HAD II

Number of Pixels

NTSC: 1020(H)x508(V) / PAL: 1020(H)x596(V)

System of Signal

NTSC / PAL

Horizontal Resolution

750TV Lines

Minimum Illumination

0 Lux (with IR-LED on)

Lens

4~9 mm Varifocal, 2 Megapixel Lens

Auto Electronic Shutter

1/50s(1/60s)~1/100,000sec

WDR

Yes

OSD Menu

Yes (multi language)

Day & Night (ICR)

Auto / Color / B&W

ATR

ON/OFF

White Balance

ON/OFF

Back Light Comp.

ON/OFF

Noise Reduction

ON/OFF

Motion Detection

ON/OFF

Privacy Masking

Yes

Picture Adjustment

Mirror / Brightness / Contrast / Sharpness / Hue

S/N Ratio

>52dB

γ(Gamma) Correction

>0.45

Operation Temperature

-5°C ~ +40°C, RH90%(MAX)

Sync System

Internal

Video Output

1Vpp/75Ω

Power Source Supply

12VDC(+/~10%)

Weight

970 g

Dimension

φ150 x 102.5 mm

IR LEDs

30pcs, φ5mm

Color

White
