Thông số kỹ thuật

Bảo hành	18 tháng

Đặc điểm nổi bật

MODEL AVK 584ZP GENEGAL Signal System NTSC or PAL Pick-up Element 1/4" Sony Color Super HAD CCD image sensor Number of Pixels 768(H)*494(V) / 752(H)*582(V) Resolution High Resolution Min. Illumination 0.6 Lux / F1.6 S/N Ratio More than 48dB (AGC off)

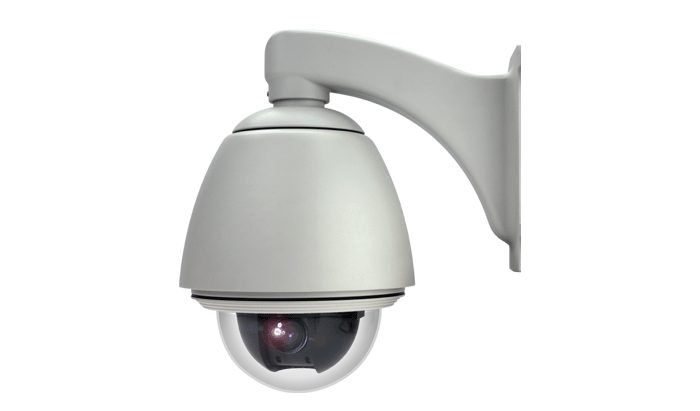

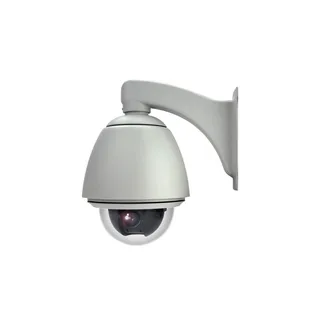

MODEL	AVK 584ZP
GENEGAL
Signal System	NTSC or PAL
Pick-up Element	1/4" Sony Color Super HAD CCD image sensor
Number of Pixels	768(H)494(V) / 752(H)582(V)
Resolution	High Resolution
Min. Illumination	0.6 Lux / F1.6
S/N Ratio	More than 48dB (AGC off)
Video Output	1.0 Vp-p. 75Ω
BLC	On / Off
Gain Control	Low, Medium & High / Off
Sharpness	Auto / Low / Medium / High
White Balance	Auto / Indoor 1 / Indoor 2 / Sun / Cloudy * Indoor1 = 9000K; Indoor2 = 3000K; Sun = 5500K;Cloudy=7000K
Camera Title	10 characters or symbols
Preset Points and Sequence	Total 8 groups, 256 programmable preset points * The sequence of all the preset points will follow the order of the minimal panning route
Auto Tracking	Yes
Baud Rate	9600
LENS
Focal Length	f3.9 ~ 85.9mm
F-number	F1.6 (Wide) ~ 3.7 (Tele)
Viewing Angle	4∘~ 60∘
Auto Electronic Shutter	1 / 60 (1/50) to 1 / 100,000 sec
Auto Focus	Always / PTZ / Z Only / P Only
MECHANISM
Pan Range	360∘
Pan Speed	360∘/ 1 sec * The pan speed can be adjusted according to the different pan speed mode
Tilt Range	90∘
Tilt Speed	0∘~ 90∘under 1 sec
Zoom Ratio	22X optical zoom
Zoom Speed	Approx. 7s (Tele ~ Wide)
OTHERS
IP Rating	IP66
Ambient Operating Temperature	-20°C ~ 50°C (-4°F ~ 122 °F) Fan: 40°C on, 30°C off Heater: 5°C on, 15°C off
Power Source (±10%)	DC12V
Current Consumption	3A (max)
Dimensions (mm)**	323(W) x 339(H) (Bracket included)
Optional Device	Keyboard controller
