Thông số kỹ thuật

Bảo hành	18 tháng

Đặc điểm nổi bật

+ SPECIFICATIONS* Model AVK563 Pick up Element 1/3" HR color CCD Number of Pixel 768(H) x 494(V) / 752(H) x 582(V)) Resolution 520 TV lines Minimum illumination 0.15 Lux / F1.4, 0 Lux (IR ON) IR LED 56 units IR Effective Range 40 meters S/N Ratio

+ SPECIFICATIONS*

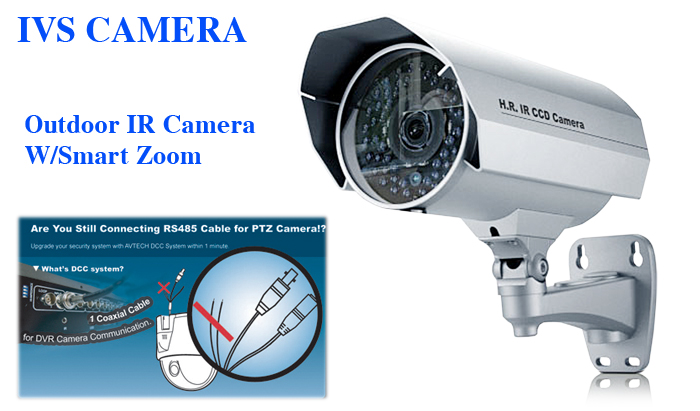

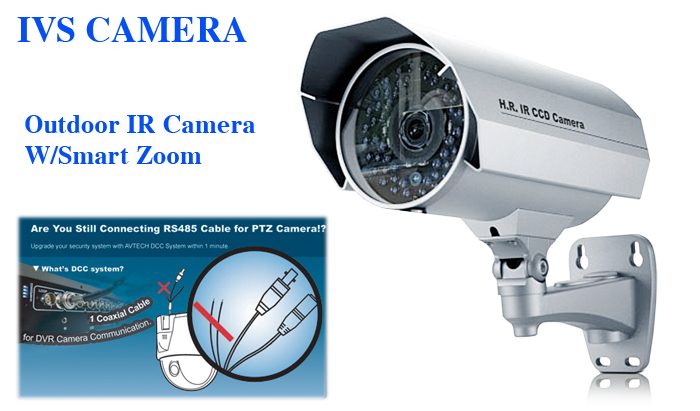

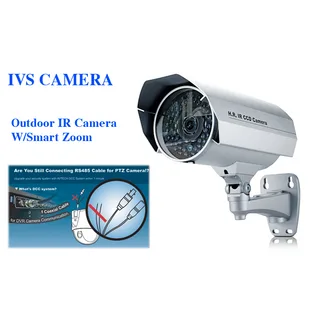

Model	AVK563
Pick up Element	1/3" HR color CCD
Number of Pixel	768(H) x 494(V) / 752(H) x 582(V))
Resolution	520 TV lines
Minimum illumination	0.15 Lux / F1.4, 0 Lux (IR ON)
IR LED	56 units
IR Effective Range	40 meters
S/N Ratio	More than 48dB (AGC off)
Electronic Shutter	1/60 (1/50) to 1/100,000 sec
Lens	f4.0mm ~ f9.0mm
Lens Angle	75° ～ 36°
IR Shift	YES
Smart Light Control	YES
Smart zoom	YES
White Balance	ATW
AGC	Auto
IRIS Mode	AES
IP Rating	IP67
Video Output	1.0 Vp-p composite, 75Ω
Operating Temperature	0℃~40℃
Power Source (±10%)	AC100V ~ 240V
Power Consumption (±10%)	Max 135W (with Heater)
Optional Peripheral	AVK-T1
