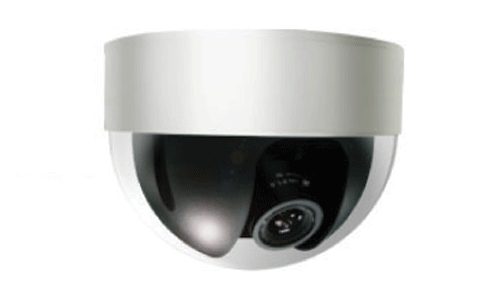

Camera Avtech AVK018ZP
- Bảo hành
- 18 tháng
Khu vực này chưa có chi nhánh còn hàng — chọn khu vực khác hoặc đặt hàng online.
Thông số kỹ thuật
| Bảo hành | 18 tháng |
|---|
Đặc điểm nổi bật
Nội dung chính
AVK018ZP

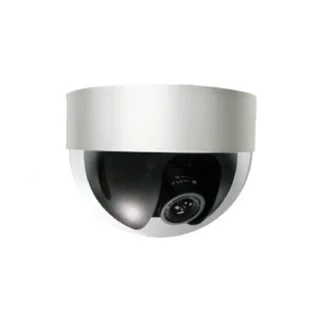

H.R Dome Camera
(Electronic Lens Control )
*** Overview
- This dome camera, AVK018, is a controllable camera, allowing users to manually adjust & set camera parameters from a DVR without additionally connecting RS485 control wires. It can be used with our DCCS-enabled DVR series for directly control, or with other brand’s DVR controlled via our optional DCCS control box, AVK-T1.
*** FEATURES
- Supports DVR / Camera Communication System (DCCS) Technology
-- There’s no need to additionally connect RS485 control wires for camera control because the control signals can be transferred by coaxial cables directly.
-- Camera installation is highly simplified to lower labor cost and working hours.
- Easy Focus Adjustment
-- Focus adjustment can be done remotely on DVR or with the optional control box, AVK-T1. No need to be onsite.
- Camera Parameter Adjustable Based on Different Needs
*** SPECIFICCATIONS
|
MODEL |
AVK 018ZB |
|
Pick up Element |
1/3" HR color CCD |
|
Number of Pixel |
771(H) x 492(V) / 753(H) x 582(V) |
|
Resolution |
520 TVL |
|
Min. Illumination |
0.15 Lux / F1.8 |
|
S/N Ratio |
More than 48dB (AGC off) |
|
Electronic Shutter |
1/60 (1/50) to 1/100,000 sec |
|
Lens |
f4.0mm ~ f9.0mm |
|
Lens Angle |
75° ～ 36° |
|
Iris Mode |
AES |
|
White Balance |
ATW |
|
Video Output |
1.0 Vp-p composite, 75Ω |
|
Power Source (±10%) |
DC 12V / 2.9W |
|
Power Consumption (±10%) |
240mA |
|
Dimensions (mm)** |
124.3(Ø) x 102(H) |
|
Optional Peripheral |
AVK-T1 |
* Specifications are subject to change without notice.
** Dimensional Tolerance: ± 5mm
