Thông số kỹ thuật

Bảo hành	18 tháng

Đặc điểm nổi bật

Model AVC442A Pick up Element 1/3" HR color CCD image sensor with SONY Effio DSP Number of Pixel 771(H) x 492(V) / 753(H) x 582(V) Resolution Up to 600 TV lines Min. Illumination 0.05 Lux / F1.4 S/N Ratio More than 48dB (AGC off) Electronic Shutter

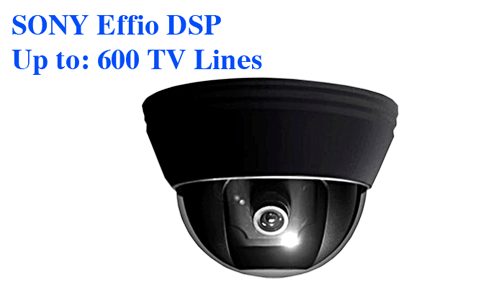

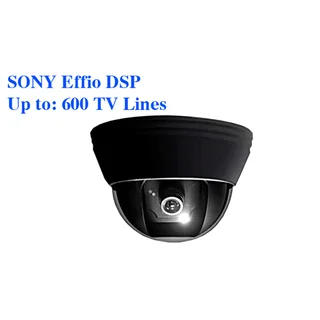

Model	AVC442A
Pick up Element	1/3" HR color CCD image sensor with SONY Effio DSP
Number of Pixel	771(H) x 492(V) / 753(H) x 582(V)
Resolution	Up to 600 TV lines
Min. Illumination	0.05 Lux / F1.4
S/N Ratio	More than 48dB (AGC off)
Electronic Shutter	1/60 (1/50) to 1/100,000 sec.
Lens	f6.0mm / F1.4
Lens Angle	54°
Color Rolling Suppress	YES
BLC	YES
IRIS Mode	AES
White Balance	ATW
Video Output	1.0Vp-p composite, 75Ω
Power Source (±10%)	DC12V
Current Consumption (±10%)	70mA
Dimensions (mm)**	125(Ø) × 85(H)
