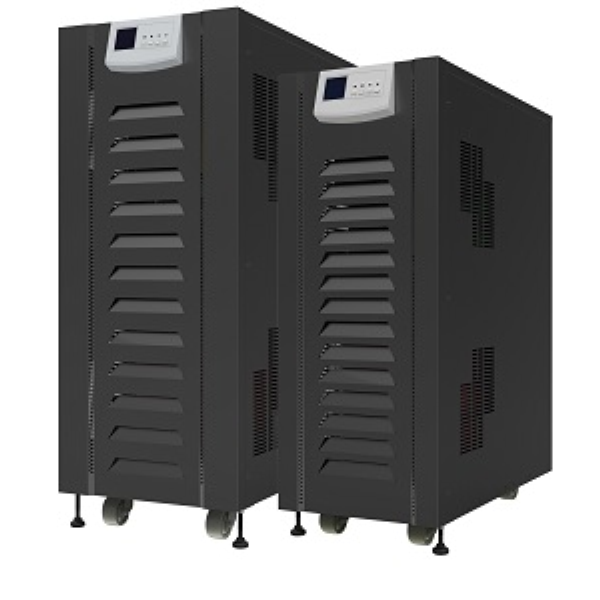

Bộ lưu điện UPS Protitan L33 Serie 10-200kVA

MODEL

(3 Phase Input
/3 Phase Output)

L3310K

L3320K

L3330K

L3340K

L3360K

L3380K

L33100K

L33120K

L33160K

L33200K

Input

Mains

Rated Voltage

380V(Line Voltage)

Rated Voltage

& Range

380V±25%

Frequency

& Range

46Hz-54Hz, 56Hz-64Hz

Bypass Input

Rated Voltage

380V(Line Voltage)

Rated Voltage

& Range

380V±25%

Frequency

& Range

46Hz-54Hz, 56Hz-64Hz

Output

Rated Power

10KVA
/8KW

20KVA
/16KW

30KVA
/24KW

40KVA
/32KW

60KVA
/48KW

80KVA
/64KW

100KVA
/80KW

120KVA
/96KW

160KVA
/128KW

200KVA/160KW

Rated Voltage

380V(Line Voltage)

Rated Voltage

& Stability

380V±2%

THDV

LinearLoad

≤3%

Non-linearLoad

≤8%

Output Power factor

0.8(Lag)

Tracking Fruquency
& Range

46Hz-54Hz, 56Hz-64Hz

Fruquency& Stability

(Battery

Inverter)

(50±0.1)Hz, (60±0.1)Hz

Overload
Capability

Less than 105%±5% for overload alarm;
105%±5%~125%±5% for 2 minutes;
125%±5%~150%±5% for 30 second;
More than 150%±5% for 0.5 second;

Converting time
(Normal Mode)

<1mS

Converting time
(ECO Mode)

<25mS

System

System Efficiency
(Linear Load)

≥76%

≥82%

≥85%

≥89%

≥90%

Display

LCD+LED

EMS
/EMI

Transmission

IEC EN62040-02

Radiation

Resisting Interference

IEC 61000-4-2.4.5 Level IV, IEC61000-4-3 Level III

Safety
Requirements

GB4943-2001/IEC62040-1

Noise Level
(1M)

≤55dB

≤70dB

Isolate Impedance
(Ω)

>2M(500VDC)

SurgeCurrent
Protection

IEC60664-1 IV

Environment

Operating
Temperature

0℃ - 40℃

Elevation

<1000m

Storing
Temperature

-15℃ - 45℃

Operation
Humidity

20% - 95%

Battery

192VDC

384VDC

UPS Size(W x H x D)mm

455x1045x830

515x1135x830

700x1600x800

850x1600x800

1300x1900x900

Package Size(WxHxD)mm

525x1250x925

575x1305x915

765x1777x870

920x1777x870

1380x2055x986
