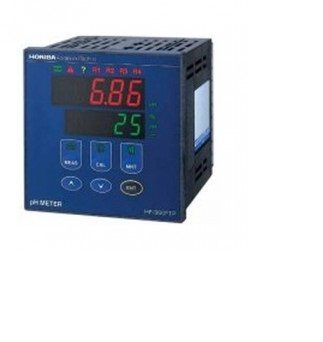

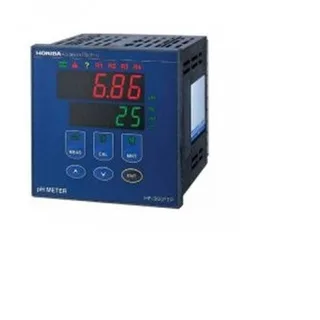

Bộ điều khiển PH Horiba HP-960FTP

The HP-960FTP industrial pH meter is a high-end pH meter with a four-point alarm and a time sharing proportional control function.
It can also be linked with a cleaning device via an external input, extending its automatic operation time.

• Time sharing proportional control function with F Zone
  Unlike commonly used time sharing proportional control functions, whose on-off frequency has generally been fixed, the HP-960FTP includes an control method called F Zone, whereby as the pH difference becomes smaller, it changes not just the time for which the pump injecting pH regulator is on, but also its frequency.
• Four control outputs equipped
  You can set values of your choice for the upper and lower limits of the four control outputs, and switch them to either on-off control or time sharing proportional control.
• Automatic diagnosis function for faults in electrode properties
  If there is an asymmetry potential, sensitivity or response speed in correction, the HP-960FTP automatically determines whether there is a fault in the pH electrodes, and displays an error message.
• Can be linked with a cleaning device via an external input
  An input signal from a cleaning device can be used to put the output of the measurement value on hold.
• Compatible with five types of temperature compensation elements
  Five types of temperature compensation element are supported: 500 Ω, 6.8 kΩ, 1 kΩ, 10 kΩ and 350 Ω.
• Easy pH correction
  After immersing the pH electrodes in the standard fluid, simply follow the instructions displayed and press the ENT key.
  The automatic correction process is plain and simple.
• A line-up of lead-free pH electrodes
  Uses lead-free glass. In addition, almost all sections of the pH electrodes, including lead wires and soldered junctions are lead-free.
• Uses lead-free solder
  To reduce the burden on the environment, lead-free solder has been used to mount the components on the printed circuit board.
