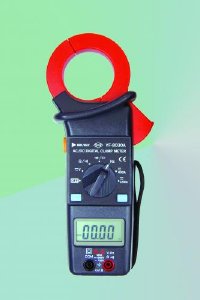

Name: Ampe kìm TENMARS YF-8030A
SKU: TENMARS YF-8030A
Price: 2000000000 VND
Availability: InStock

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Tên sản phẩm : TENMARS YF-8030A Chi tiết: 1200A AC /DC Clamp-On Meter DISPLAY - 3¾ digits LCD with maximum reading 4000. - Overload indication: ' 4 ' or ' -4 ' flash accompany with continuous buzzer. - Automatic polarity, ' - ' display for

Tên sản phẩm :

TENMARS YF-8030A

Chi tiết:

1200A AC /DC Clamp-On Meter

DISPLAY

- 3¾ digits LCD with maximum reading 4000.

- Overload indication: ' 4 ' or ' -4 ' flash accompany with continuous buzzer.

- Automatic polarity, ' - ' display for negative input.

- Low battery indication.

FUNCTIONS

- Function keys: Max/Min Hold.

- Test ranges: ACV, ACA, DCV, DCA, Ohm, Frequency, Diode, Continuity, Capacitance(1pF~30uF).

SPECIFICATIONS

Model	YF-8030A
Max measuring current	1200A
Display counts	4000
Max conductor size	52mm
AC Current	0.1A~1200A +/- (2.0%+5)
DC Current	0.1A~1200A +/- (1.5%+5)
AC Voltage	1mV ~750V ( +/- 1.2%+3)
DC Voltage	0.1mV~1000V (Auto) +/-(1.5%+5)
Resistance	100m Ohm ~ 40M Ohm
Continuity buzzer	YES
Diode	Test Volt / 3V
Frequency	0.01Hz ~ 500KHZ
AC/DC WATT	------
Autorange	YES
Bargraph	YES
Auto power OFF	YES
Peak hold	------
Data hold	------
MAX/MIN	YES
REL(ZERO)	YES
Size	2216235mm
Weight	500g
