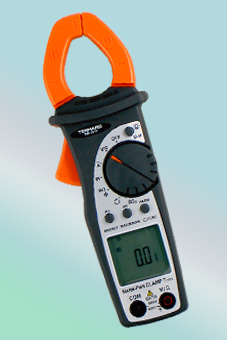

TM-1017 ... 400A Ture RMS
AC Power Clamp Meter
+ Phase Rotation Tester
- FUNCTIONS W3Ø,HV,HA,PHASE SEQ,Audible continuity tests.
- Frequency with test leads and jaws up to 400Hz.
- Active,Reactive, Apparent power on.
- Phase sequence with one wire.
- Single/Three phase systems.
- Active,Reactive,Apparent energy on.
- Power, Factor,cosØ on Single/ Three phase systems.
- MAX /MIN /AVG function.
- Fast PEAK function(1ms).
- Phase sequence.
- Voltage/Current Harmonics up to 25th with THD %.
- Energy.
- Total Harmonic Distortion (HTD%).
SPECIFICATIONS
|
Model
|
TM-1017
|
|
Max measuring current
|
400A
|
|
Display counts
|
10000 Count Backlit LCD
|
|
Max. Conductor size
|
30 mm (11.8¡¨)
|
|
AC Current
|
0.1~400A +/- (1.0%+3)
|
|
AC Voltage
|
0.1~ 599.9V +/-(1.0%+3)
|
|
DC Voltage
|
0.1~ 599.9V +/-(1.0%+3)
|
|
Resistance
|
0.1~1999 Ohm +/- (1.0%+5)
|
|
Continuity buzzer
|
YES
|
|
Frequency
|
4 0Hz~399.9Hz +/- (0.5%+1)
|
|
Bargraph
|
YES
|
|
Autorange
|
YES
|
|
Auto power OFF
|
YES
|
|
Peak hold
|
YES
|
|
Data hold
|
YES
|
|
MAX/MIN
|
YES
|
|
Dimension
|
205x64x39mm(LxWxH).
|
|
Weight
|
280g.(including battery)
|
|
Power
|
2 batteries 1.5V AAA type
|
|
