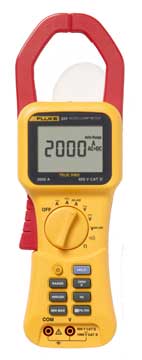

Ampe kìm AC/DC Fluke 353

Fluke 353 Specifications

Electrical Specifications

Current Measurement DC and AC: 10 Hz to 100 Hz

Range

40A

400A

2000 A; 1400 ac rms

Resolution

10 mA

100 mA

1 A

Accuracy ( A)

1.5% rdg + 15 digits

1.5% rdg + 5 digits

Trigger Level for Inrush

0.50 A

5.0 A

5 A

Trigger Level for Hz

Filter Off

2.50 A

2.0 A

8 A

Filter On

0.50 A

2.50 A

8 A

Crest Factor (50/60 Hz)

Range

40A

400A

2000 A; 1400 ac rms

Crest Factor (50/60 Hz)

2 @ 33 A

2 @ 330 A

2 @ 1000 A

2.4 @ 27 A

2.4 @ 270 A

2.4 @ 833 A

Add 2 % to error spec for CF > 2

Current Measurement AC: 100.1 Hz to 1 kHz

Range

40A

400A

2000 A; 1400 ac rms

Resolution

10 mA

100 mA

1 A

Accuracy ( A)

1.5% rdg + 15 digits

1.5% rdg + 5 digits

Trigger Level for Inrush

0.50 A

5.0 A

5 A

Trigger Level for Hz

Filter Off

2.50 A

2.0 A

8 A

Filter On

0.50 A

2.50 A

8 A

Frequency measurement

Measurement Range

5.0 Hz to 1 kHz

Resolution

0.1 Hz (15 Hz to 399.9 Hz)

1 Hz (400 Hz to 1 kHz)

Accuracy

5.0 Hz to 100 Hz

0.2 % + 2 counts

100.1 Hz to 1 kHz

0.5 % + 5 counts

Trigger Level

Refer to current and voltage tables

Environmental Specifications

Operating Temperature

32 °F to + 122 °F (0 °C to +50 °C)

Storage Temperature

-4 °F to 140 °F (-20 °C to +60 °C)

Operating Humidity

0 to 95 % (non-condensing)

Operating Altitude

2000m

Storage Altitude

10,000 m

IP Rating

42 (Indoor use Only)

Drop Test Requirements

1 m

EMI, RFI, EMC

FCC part 15, IEC/EN 61326-1:1997 class B

IEC/EN 61326:1997 3V/m, performance criteria B, EN61325

Temperature co-Efficient

Current

 0.1 % of reading per °C outside 22 °C to 24 °C

Voltage

 0.1 % of reading per °C outside 22 °C to 24 °C

General Specifications

Batteries:

6- 1.5 V AA NEDA 15 A or IEC LR6

Test Leads:

Rated to 1000 V

Weight:

 1.8 lb (.814 kg)

Jaw Size:

2.28 inches (58 mm)

Dimensions (L x W x D):

12 inches x 3.75 inches x
2 inches (300 mm x 98 mm x 52 mm)

Safety Rating:

IEC 61010-2-032, 600 V CAT IV,

1000 V CAT III
