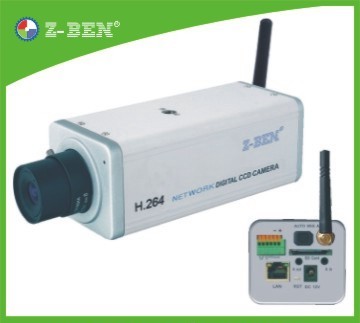

• ZB-306AASWIP

  • Mã hàng :ZB-306AASWIP
  • Bảo hành : 12 tháng

  • Giá : 0 ( Giá chưa bao gồm VAT )
  • Mua hàng In báo giá
  • Giá bán niêm yết trên Website là giá phải tính thuế VAT. Kính mong quý khách lấy hóa đơn đỏ khi mua hàng để tuân thủ đúng quy định của pháp luật
Hà Nội
TP.HCM Q.Tân Phú
TP.HCM Quận 10

Thông tin sản phẩm

 MODEL

ZB-306AASWIP

Image Senseer

1/3" Sony SUPER HAD CCD, 540 line

Auto Iris Control

DC drive

Vdeo Compression

H.264 Baseline Profile@Level 2.2

Video Definition

PAL:352*288(CIF), 704*288(2CIF), 704*576(D1)

 Image Senseer

NTSC:352*240(CIF), 704*240(2CIF), 704*480(D1)

Min.illumination

0.1Lux

Video Parameters

Brightness, Hue, Contrast, Saturation, Image quality

Lens Options

3.7mm

Transmission Frequency

2.4G

Transmission Power

500mW

Transmission Distance

500-100m

Streaming Format

Optional video streaming or audio & video composite streaming

Video Frame Rate

PAL: 1-25 frames/second



NTSC:1-30 frames/second

Video Compression Bitrate

16Kbit/S  4Mbit/S

Audio input

1 channel, linear input

Audio Compression

G.726

Audio output

1 channel, RCA interface, linear uotput

Supported Protocol

TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS, ARP,ICMP, POP3,NTP,IP sec, UPNP, RTP,RTCP

System Interface

10M/100M self-adapting Ethernet port



1 RS485 port



Wifi port 802.11b/g wireless network

Operating Temperatrue

-10C~+50C

Power Supply

DC 12V
