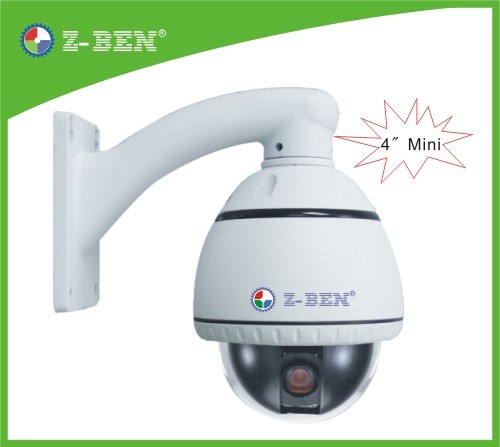

• ZB-1016

  • Mã hàng :ZB-1016
  • Bảo hành : 12 tháng

  • Giá : 0 ( Giá chưa bao gồm VAT )
  • Mua hàng In báo giá
  • Giá bán niêm yết trên Website là giá phải tính thuế VAT. Kính mong quý khách lấy hóa đơn đỏ khi mua hàng để tuân thủ đúng quy định của pháp luật
Hà Nội
TP.HCM Q.Tân Phú
TP.HCM Quận 10

Thông tin sản phẩm

 MODEL

ZB-1016

Signal SYSTEM

PAL/NTSC

Effective Resolution

440.000 Pixels

Horiontal resolution

480 TVL

S/N Ratio

>=48dB

White Balance

Auto tracking, Indoor/ourdoor Manual

Lens mount

216X f=4.1-73.8mm/220X  f=3.9-85.8mm

Shutter speed

1/1-1/10.000s

Electronic Shutter

Auto

Min focus

10mm(1x),100mm(27)

Minimum illumination

Auto/Bright/Shutter/IRIS

AGC

Auto/Manual

Exposal

Auto/Manual/Shutter/IRIS

BLC

on/off

Focus mode

Auto/Manual

Video output

10Vp-p, 75Ω(BNC)

Runnung speed

Min:1/S  Max:280/S

Comminication

RS485 bus

Focus Function

Auto/manual/zoom in (uot)trgger/manual trigger

Environment temperature

Indoor: (0C~+40C)   outdoor:  (-40C~+60C)

Environment humidity

<=95%(No dew)

Comminication

<=30W

Comminication Protocol

PELCO_D,  PELCO_P

Baud rate

1200bps/2400bps/4800bps/9600bps

Running speed

0.1 ~280/s(1-64 grade available)

Horizotal

360

Vertical

90

Auto Flip

 Horizotal 180,Vertical90

Preset location

128 presets

Speed Focus

Auto matching

Power Supply

AC24V 1.25A(indoor), 3A(uotdoor,with fan heating)

Dimensinons

4"
