Thông tin sản phẩm
Ⅰ:Technical parameters:
Control System: |
PLC |
Electron Optic Tracking System: |
RIKO |
Operation Interface: |
CTSDI |
L Nozzle: |
1 Set |
Chassis Wash System: |
1 Set |
Side Nozzle: |
1 Set |
Avoid Rubbing System: |
360°Round |
High Pressure Water Pump: |
Taiwan |
Machine Casing: |
Hot Dip Galvanized And Outdoor Powder Paint |
Colour: |
Red/ Yellow/ Bule/ White/ Green |
Water Consumption: |
40-70L/Car |
Power Consumption: |
0.2Kwh/Car |
Main Electrical: |
Schneider |
Machine Size: |
7500MM*3700MM*3200MM (L*W*H) |
Vehicle Size: |
5200MM*2300MM*2000MM (L*W*H) |
Rail Length: |
7000MM |
Washing Time |
100S/Car |
Remote Control System: |
1 Set |
Water Wax Machine: |
1 Set |
Ⅱ: Product introduction:

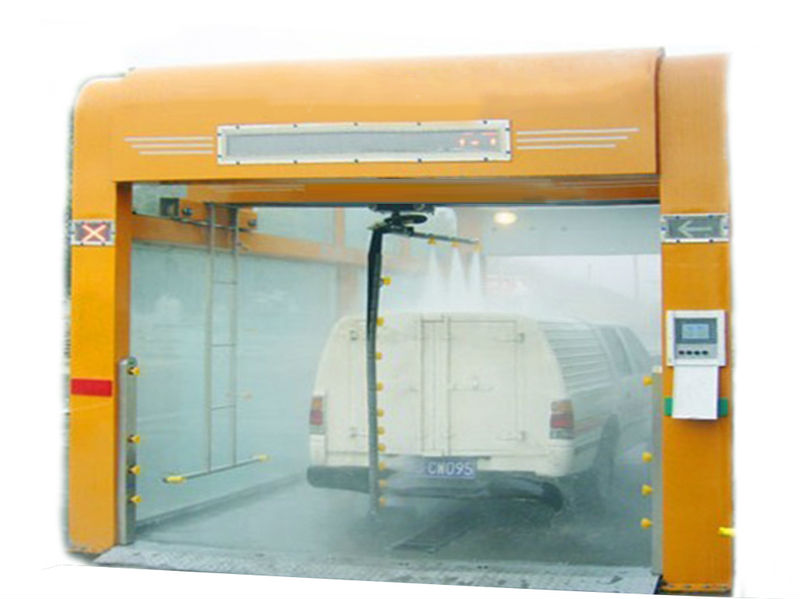

AT-WU03 series tunnel wash equipment is automatic system. The vehicle is
driven in the conveyor system. The equipment use experience brush washing
technology. The complete equipment is modular structure and transport in
partly-assembled form. The complete structure is galvanized and painted, to avoid
corrosion in the harsh car wash conditions.
Ⅲ:Feature:
Outdoor Glass House |
1 Set |
