Ⅰ:Technical parameters:
Machine size: |
10750MM*3800MM*2950MM(L*W*H) |
Washable car size: |
5350MM*2250MM*2250MM(L*W*H) |
Assembling range: |
13500MM*4000MM(L*W) |
Air supply: |
Pressure 0.6-0.8Mpa |
Total electrical capacity: |
12KW |
Total power: |
13.45KW |
Maximum operating: |
11.4KW |
Various components Power: |
Top brush 0.3KW*1 |
|
Side brush 0.3KW*4 |
|
Small brush 0.2KW*4 |
|
Conveyor traveling 1.1KW*1 |
|
Water Pump 0.75KW*1 |
|
Dryer 5.5KW*2 |
|
High pressure pump 4KW*1 |
|
Swing motor 0.025KW*3 |
Water consumption: |
125L |
Washable car: |
car,jeep,coach below 9 seats |
Washing time: |
40sets/hour |
Ⅱ: Product introduction:

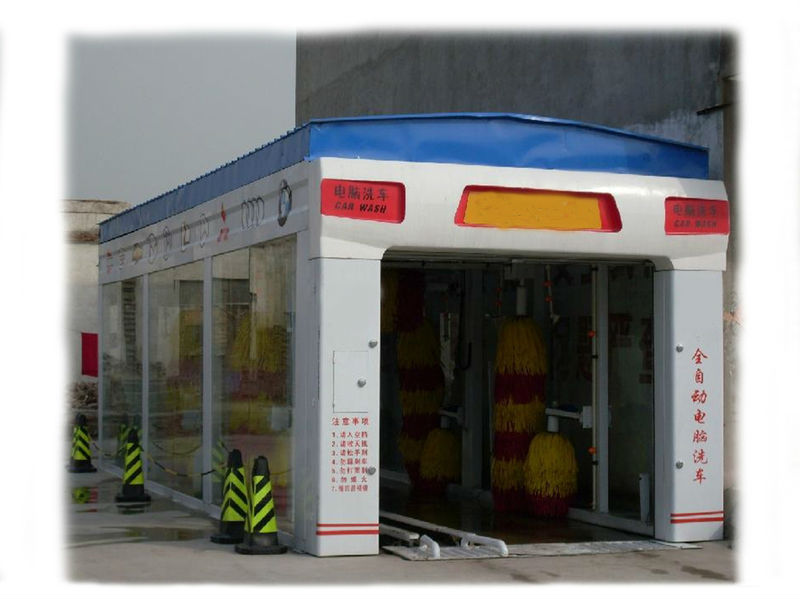

AT-WT03 Tunnel car washing machine featured as fast speed of washing and strong cleaning ability, is equipped with second-generation cloth brush and foam brush, the perfect-angled side brush technology improves the cleaning ability extremely, the profiling air-dry technology ensures the efficient drying, the unique design is qualified to dodge the bumpers to improve the safety, the hot-dip galvanized frame ensures a longer service time.
Ⅲ:Feature:
