Ⅰ:Technical parameters:
Machine size: |
16000MM*3760MM*3100MM(L*W*H) |
Washable car size: |
5200MM*1950MM*2000MM(L*W*H) |
Conveyor speed: |
5-6m/min |
Washing capacity: |
60-80 cars per hour |
Water consumption: |
150-200 liters per car |
Power supply & consumption: |
380V, 50Hz, 3Phase, 40Kw |
Compress air supply: |
0.8Mpa |
Ⅱ: Product introduction:

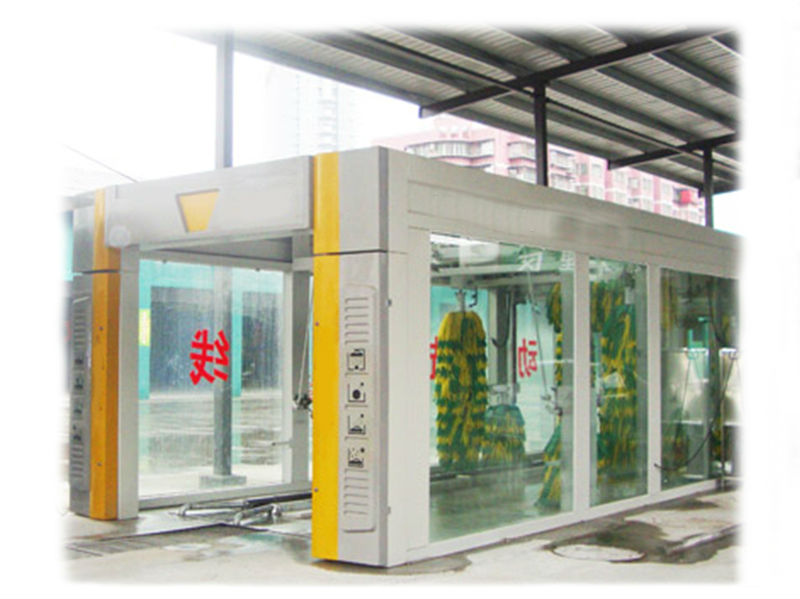

AT-WT02 series tunnel wash equipment is automatic system. The vehicle is driven in the conveyor system. The equipment use experience brush washing technology. The complete equipment is modular structure and transport in partly-assembled form. The complete structure is galvanized and painted, to avoid corrosion in the harsh car wash conditions.
Ⅲ:Feature:
Cost-effective use for 60-80 cars per hour; more vehicles, more speed.
Multiple wash programs, contains all the necessary functions for a successful washing operation.
Drying with integral dryers.
Soft foam brush, washes gently without scratch.
Frequency control at the travel and lift drives for a careful, smooth running and variable speeds.
Precise control, contour-tracking washing and drying.
Equipment and housing in one complete unit.
Optional 7 brushes, 9 brushes, water recycling system.
