Ⅰ:Technical parameters:
Machine Size |
2460MM*3600MM*2850MM(L*W*H) |
Rail Size |
8150MM*3200MM(L* W) |
Swing arm Size |
2850MM (H) |
Vehicle Size |
5350MM*2150MM*2200MM(L*W*H) |
Assembling Range |
9800MM*3650MM*2850MM(L*W*H) |
Air Supply |
Pressure 0.6-0.8 Mpa |
Total Electrical Capacity |
12 KW |
Total Power |
16.475KW |
Maximum Operating Power |
11.4KW |
Various Components Power |
Top brush 0.3KW*1 |
|
Side brush 0.3KW*2 |
|
Small brush 0.2KW*2 |
|
Conveyor traveling 0.2KW*2 |
|
Water Pump 0.75KW*1 |
|
Dryer 5.5KW*2High pressure pump 3KW*1Swing motor 0.025KW*1 |
Water Consumption |
125L/Car |
Washable Car |
car, jeep, coach below 9 seats |
Washing Time |
1 roll over wash: 3mins, 2 roll over wash: 5 mins |
Washing Ways |
1 roll over economy wash 2 roll over standard wash |
Ⅱ: Product introduction:

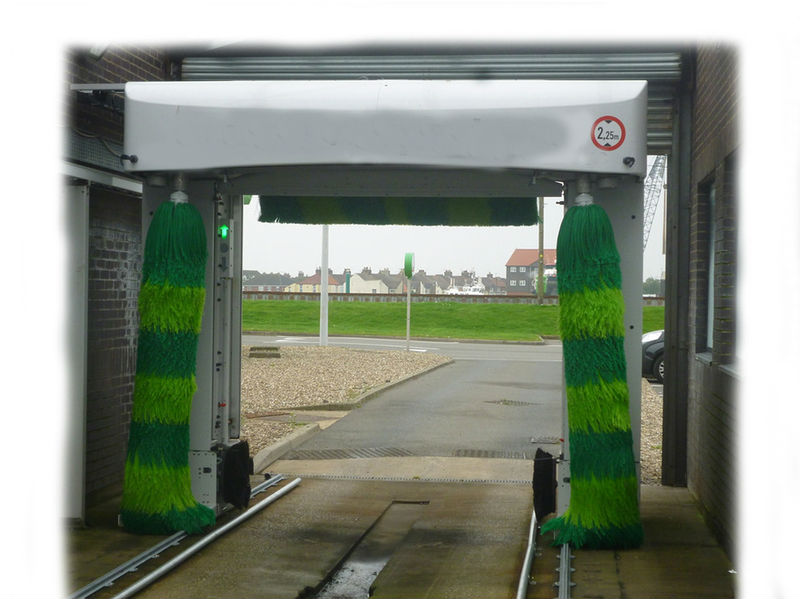

AT-WL05 Automatic car washing machine is equipped with new-generation car model detection technology which is featured as combination of various ways of car washing and fast speed of cleaning, the profiling air-dry technology ensures the efficient drying , the combination of various ways of washing improves the washing speed, the hot-dip galvanized frame ensure a longer service time.
Ⅲ:Feature:
-
Professional washes for cars, jeeps and all kinds of coaches below 9 seats.
-
Adopting advanced technology and full module design, this can be combined to more than ten different functions for different needs.
-
The main electrical components are imported from famous foreign factory, which can ensure safe and reliable
-
Unique fault self-testing system, Waterproof motor, profiling powerful air-dry-system.
-
Adopting the advanced high pressure system, Pre-swing high pressure water wash does not hurt the car.
-
Hot-dip Galvanizing (Zinc layer> 70 um) frame.
-
Maintenance-free of polymer materials roller and TN lifting mechanism.
-
Japanese EVA brushes to prevent injury car.
Optional under chassis wash systems and water recycling system.
