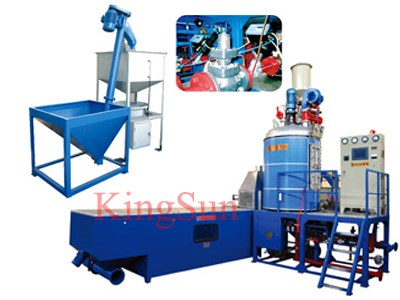

PSJ70.110 Batch Pre-epander
|
|
|
Item
|
|
Type
|
|
|
PSJ 70
|
PSJ 110
|
|
|
E*pansion Chamber
|
Diameter
Volume
Useable Volume
|
f700mm
0.45m3
0.32 m3
|
f1100mm
1.4m3
0.9 m3
|
|
|
Steam
|
Entry
Consumption
Pressure
|
DN40
1-1.4kg/cycle
0.6-0.8MPa
|
DN50
6-9kg/cycle
0.6-0.8MPa
|
|
|
Compressed Air
|
Entry
Consumption
Pressure
|
DN25
0.4-0.6 m3/cycle
0.6-0.8MPa
|
DN25
0.5-0.6 m3/cycle
0.6-0.8MPa
|
|
|
Drainage
|
Drainage Port
Condensate
|
DN80
DN50
|
DN80
DN80
|
|
|
Throughput
|
|
12 g/l
15 g/l
25 g/l
80g/l
|
75kg/l
100kg/l
160kg/l
320kg/l
|
12 g/l
15 g/l
20g/l
30g/l
|
200kg/l
300kg/l
400kg/l
500kg/l
|
|
|
Material Conveying Line
|
|
f150mm
|
f150mm
|
|
|
Connected Load
|
|
13.23KW
|
16.53KW
|
|
|
Density
|
|
12-80 g/l
|
12-30g/l
|
|
|
Density Tolerance
|
|
<=±3%
|
<=±3%
|
|
|
Overall Dimension
|
(L*W*H)
|
5600*2950*3360(mm)
|
5600*3800*4060(mm)
|
|
|
Weight
|
|
1500kg
|
3500kg
|
|
|
Room Height Required
|
|
5000mm
|
5000mm
|
|
