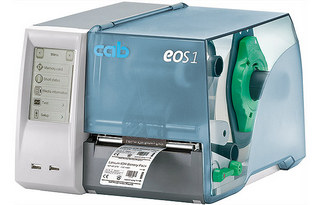

Label printer |
EOS1 / EOS4 |
|
Printhead |
|
Printing method |
Thermal transfer/Thermal direkt |
|
Print resolution dpi |
203 / 300 |
|
Print width up to mm |
108 / 105,7 |
|
Print speed mm/s |
30, 40, 50, 75, 100, 125 |
|
Material1) on rolls and fanfolded |
|
|
|
Thickness mm |
Width mm |
Height mm |
|
Labels: Paper, cardboard, textiles, plastics such as PET, PE, PP, PVC, PU, acrylate, PI |
0,055 - 0,7 |
single lan10 - 116
multi lan 5 - 116 |
6 - 1000 |
|
Labels: carrierpaper 60 - 110 g/m2 |
0,055 - 0,10 |
25 - 120 |
continuous |
|
Continuous material: cardboard 80 - 180 g/m2 |
0,10 - 0,20 |
6 - 120 |
10 - 1000 |
|
Continuous material: plastic film PVC |
0,30 |
6 - 60 |
10 - 1000 |
|
Continuous material: flat pressed tubes |
0,40 - 0,70 |
5 - 85 |
10 - 1000 |
|
Media roll |
core Ø mm |
EOS1 |
EOS4 |
|
Total Ø mm |
38 /40 |
155 |
210 |
|
Total Ø mm |
76 |
152,4 |
203,2 |
|
Winding direction |
outside or inside
only outside during cutting |
|
Ribbon |
|
|
Ink |
outside or inside |
|
Roll diameter up to mm |
72 |
|
Core diameter mm |
25,4 |
|
Ribbon length variabel up to m |
360 |
|
Width mm |
50 - 114 |
|
Printer dimensions |
EOS1 |
EOS4 |
|
Height x Depth x Width mm |
189 x 322 x 253 |
245 x 412 x 264 |
|
Weight kg |
4 |
5 |
Label sensor
|
|
Gap sensor for leading edge of the label or punching marks and end of material |
|
Reflective sensor from the bottom for printing marks |
|
Distance from the center to the left mm |
0 - 58 |
Electronics
|
|
Prozessor high speed 32 Bit clock rate MHz |
400 |
|
RAM MB |
64 |
|
Memory IFFS MB Flash |
16 |
|
Real-time clock, printout of time and date, data storage on shut-down |
|
Acoustic signal in case of error |
Interfaces
|
|
RS232C 1.200 up to 230.400 Baud/8Bit |
 |
|
|
USB 2.0 full speed slave for PC connection |
 |
|
Ethernet 10 / 100 Base T, LPD, RawIP-Printing, ftp-Printing, DHCP, HTTP, FTP, SMTP, SNMP, TIME, Zeroconf, mDNS, SOAP |
|
|
WLAN USB Stick 54 Mbps |
|
|
Nano Bluetooth USB Adapter V2.1 |
|
USB Master for keyboard, scanner, memory stick other service key
1 x on the back side connection up to 500 mA
2 x below the operation panel connection up to 100 mA |
|
|
Operation panel |
|
Touchscreen display 160 x 255 pixels with backlight |
|
Diagonal measurement mm |
96 |
|
Operating functions: Pause, Feed, Cancel, Menu, Enter, numeric pad |
Cutter
|
|
Cutting length from mm |
10 |
|
Cuts/min. up to |
200 |
|
Monitoring |
cutter pivoted, final position not reached |
Label dispensing function only EOS4
|
|
Printing and despensing |
with push button on request
automatically after removal of the label |
|
Monitoring |
gap sensor, label in despensing position |
Operating data
|
|
Power supply |
100 – 240 V ~ 50 / 60 Hz, PFC |
|
Energy consumption |
power saving mode 1,8 W / typic 45 W / max. 100 W |
|
Temperature / Humidity Operation: |
+ 5 – 40°C / 10 – 85% not condensing |
|
Temperature / Humidity Storage: |
+ 0 – 60°C / 20 – 80% not condensing |
|
Temperature / Humidity Transport: |
– 25 – 60°C / 20 – 80% not condensing |
|
Approvals |
CE, FCC class A, CB, CCC, UL |
