LS-42 |
LS-62 |

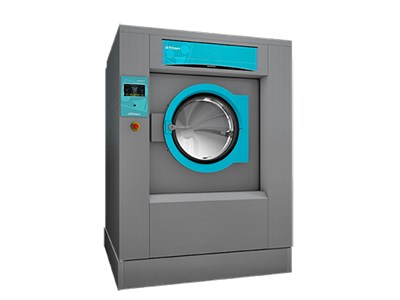

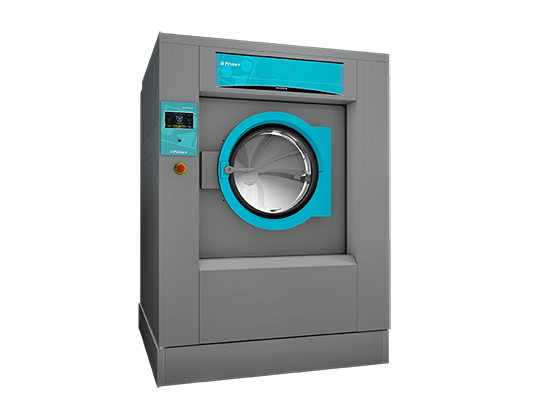

LS-125 |
| PRODUCCIÓN PRODUCTION |
Ratio 1: 9 |
kg |
45 |
66.6 |
133 |
| Ratio 1: 10 |
kg |
40 |
60 |
120 |
PROGRAMACIÓN CONTROL |
Programdor electrónico / Digital Control (P) |
|
NO |
NO |
NO |
| Microprocesador / Microprocessor (PM) |
|
SI / YES |
SI / YES |
SI / YES |
| Autoservicio / Self Service (P) |
|
NO |
NO |
NO |
MEDIDAS TAMBOR DRUM MEASURES |
Ø Tambor / Ø Drum |
mm |
918 |
1.048 |
1.360 |
| Profundidad Tambor / Drum Depth |
mm |
594 |
684 |
840 |
| Volumen Tambor / Drum Volume |
l |
400 |
600 |
1.200 |
| Ø Boca Carga / Ø Loading Door |
mm |
560 |
560 |
700 |
| Altura Suelo-Centro Puerta / Height Floor-Door Center |
mm |
1.118 |
1.118 |
1.330 |
| Altura Suelo-Parte Inferior Puerta / Height Floor-Door Bottom |
mm |
756 |
756 |
900 |
RPM |
Velocidad Lavado/Secado - Wash/Dry Speed |
rpm |
42,5 |
38 |
34 |
| Velocidad Centrifugado / Spin Speed |
rpm |
850 |
760 |
680 |
| Factor G / G Factor |
- |
350 |
350 |
350 |
CALEFACCIÓN HEATING |
Vapor Steam |
Potencia Motores / Motor Power |
W |
7.500 |
11.000 |
15.000 |
| Potencia Total / Total Power |
W |
7.500 |
11.000 |
15.000 |
Eléctrica Electric |
Potencia Motores / Motor Power |
W |
7.500 |
11.000 |
15.000 |
| Potencia Resistencias/ Heating Power |
W |
28.800 |
36.000 |
NO |
| Potencia Total / Total Power |
W |
36.300 |
47.000 |
15.000 |
CONEXIONES CONNECTIONS |
Vapor / Steam |
Entrada / Inlet |
Pulg. /inch |
3/4" |
3/4" |
1" 1/4 |
| Agua / Water |
Entrada fría /caliente /descalcificada - Cold/hot/soft Inlet |
Pulg. /inch |
1 |
1 |
1"1/2 |
| Desagüe / Drain |
Ø 1º y 2º / 1st & 2nd drain |
mm/pul-inch |
76.2/3 |
76.2/3 |
115.4/4 |
CONEXIONES ELÉCTRICAS CONNECTIONS |
A.Caliente-Vapor Hot Water-Steam |
Sección Cable 230 I + T / Intensity |
Nº x mm2 / A |
------ |
------ |
------ |
| Sección Cable 230 III + T / Acometida - Intensity |
Nº x mm2 / A |
4 x 4 / 32 |
4 x 10 / 32 |
4 x 10 / 63 |
| Sección Cable 400 III + N + T / Acometida - Intensity |
Nº x mm2 / A |
5 x 1,5 / 16 |
5 x 2,5 / 20 |
5 x 4 / 32 |
Eléctrica Electrical |
Sección Cable 230 I + T / Acometida - Intensity |
Nº x mm2 / A |
----- |
----- |
----- |
| Sección Cable 230 III + T / Acometida - Intensity |
Nº x mm2 / A |
4 x 25 / 80 |
4 x 25 / 100 |
----- |
| Sección Cable 400 III + N + T / Acometida - Intensity |
Nº x mm2 / A |
5x10 / 50 |
5 x16 / 63 |
----- |
AGUA WATER |
Presion / Pressure |
Presion entrada agua / Inlet water pressure |
bar |
2 a 4 |
2 a 4 |
2 a 4 |
Consumos Consumption |
Agua Caliente / Hot Water |
litros |
165 |
250 |
510 |
| Agua Descalcificada / Soft Water |
litros |
NO PROG. |
NO PROG. |
NO PROG. |
| Agua Fría / Cold Water |
litros |
379 |
400 |
790 |
| Total / Total |
litros |
544 |
817 |
1300 |
| VAPOR / STEAM |
Consumo (2-4 bar) / Consumption |
kg/h |
100 |
150 |
(4-8) 300 |
DESAGUE DRAIN |
Doble Desague / Double drain |
P/PM |
NO / OPC |
NO / OPC |
NO / OPC |
| Válvula / Valve |
BSP |
3" |
3" |
4" |
| Bomba / Pump |
|
NO |
NO |
NO |
DIMENSIONES MEASURES |
Netas/ Brutas Nett/ Gross |
Ancho / Width |
mm |
1.478 / 1.540 |
1.478 / 1.540 |
1.836 / 1.900 |
| Profundo / Depth |
mm |
1.394/ 1.480 |
1.444 / 1.580 |
1.863 / 1.940 |
| Altura / Height |
mm |
1.905 / 1.970 |
1.905 / 1.970 |
2.245 / 2.290 |
| Brutas / Gross |
Volumen / Volume |
m3 |
4,49 |
4,79 |
8,44 |
| Netas / Brutas Nett / Gross |
Peso / Weight |
kg |
1.350 / 1.450 |
1.600 / 1.700 |
3.300 / 3.500 |
| CERTIFICADOS CERTIFICATIONS |
CE |
|
SI / YES |
SI / YES |
SI / YES |
| WRAS |
|
SI / YES |
SI / YES |
SI / YES |
OTROS OTHERS |
Frecuencia / Frequency |
Hz |
50 - 60 * |
50 - 60 * |
50 - 60 * |
| Compartimentos detergentes / Soap compartments |
U |
5 |
5 |
5 |
| Señales detergentes liquidos / Liquid dosing signals |
P / PM |
NO / 7 |
NO / 7 |
NO / 7 |
| Posición cubetas detergentes / position soap box |
|
LATERAL DERECHO-RIGHT SIDE |
| Volcable / Tilt |
|
----- |
SI / YES |
SI / YES |
| Aire comprimido (volcado) / Compressed air (tilt) |
Nl/h |
----- |
120 |
120+20 |
| Carga al suelo / Load to floor |
kg / m2 |
668,25 |
728 |
990,87 |
| Decibelios / Decibels |
dB |
70 |
70 |
70 |
