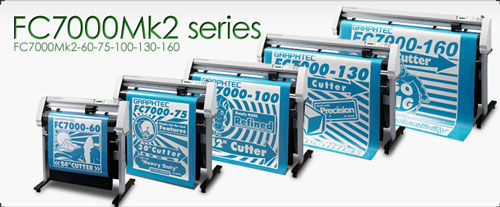

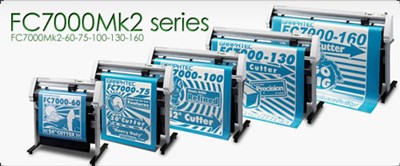

Model
|
FC7000 MK2-60
|
FC7000 MK2-75
|
FC7000 MK2-100
|
FC7000 MK2-130
|
FC7000 MK2-160
|
|
CPU
|
32-Bit
|
|
Configuration
|
Digital Servo Friction feed with McroGritrollTM drive
|
|
Max. cut area (expanded mode)
|
610 mm x 50m
(24 in x 164 ft )
|
762 mm x 50m
(30 in x 164 ft )
|
1067 mm x 50m
(42 in x 164 ft )
|
1372 mm x 50m
(54 in x 146 ft )
|
1626 mm x 50m
(64 in x 146 ft )
|
|
|
Guaranteed precision cutting area
|
590 mm x 15m
(23.2 in x 50 ft )
|
742 mm x 15m
(29.2 in x 50 ft )
|
1047 mm x 15m
(41.2 in x 50 ft )
|
1352 mm x 15m
(53.2 in x 50 ft )
|
1606 mm x 15m
(63.2 in x 50 ft )
|
|
|
Mountable media
|
Max. width
|
770 mm (30.3 in)
|
920 mm (36.2 in)
|
1224 mm (48.1 in)
|
1529 mm (60.1 in)
|
1834 mm (72.2 in)
|
|
Min. width
|
50 mm (2 in)
|
|
Max. diameter
|
200 mm
|
|
Max. weight
|
12 kg (26 lbs)
|
12 kg (26 lbs)
|
16 kg (35 lbs)
|
20 kg (44 lbs)
|
24 kg (53 lbs)
|
|
Max. cross cut area
|
730mm (28.7 in)
|
901mm (35.5 in)
|
1206mm (47.5 in)
|
1511mm (59.5 in)
|
1765mm (69.5 in)
|
|
Max. cutting speed (Axial)
|
1485 mm / sec (58.5 in/s) at a 45º angle
|
|
Max. axial acceleration
|
4.0 G (39.2 m/s2)
|
|
Cutting pressure
|
20 g to 600 g (0.196 N to 5.88 N) in 48 steps
|
|
Min. character size *1
|
3 mm (0.125 in) alphanumeric Helvetica med. Font
|
|
Mechanical resolution
|
0.005 mm (0.0002 in)
|
|
Programmable resolution
|
GP-GL : 0.1 / 0.05 / 0.025 / 0.01 mm , HP-GLTM : 0.025 mm
|
|
Repeatability *2
|
Max. 0.1 mm / 2 m (0.0039 in / 80in)
|
|
Tools
|
Accepts (1) cutting blade, (1) plotting pen, and (1) pouncing tool; Second penholder (optional)
|
|
Blade types
|
Supersteel (0.9 mm or 1.5 mm), Sapphire(1.5 mm)
|
|
Pen types
|
Water-based fiber-tip, oil-based ballpoint, and disposable ink pens
|
|
Pouncing tool type
|
Requires optional pouncing tool : (PPA33-TP12, 1.2-mm pin diameter)
|
|
Media types
|
Self-adhesive vinyl film, diamond grade, fluorescent film, reflective film, AmberlithTM , RubylithTM , window film,
high-intensity reflective film*3 , paint protection film, up to 0.25 mm tick , sandblast resist rubber up to 1 mm thick, etc.
|
|
|
Compatible paper for pouncing
|
Regular paper from 0.06 to 0.13 mm thick
|
|
Standard interfaces
|
RS-232C / USB2.0 (Full speed)
|
|
Buffer memory
|
2 MB
|
|
Command sets
|
GP-GL / HP-GLTM *4
|
|
LCD Panel
|
LCD 20 x 4 - Supports 7 languages: with amber backlight
|
|
Power supply
|
100 to 240 VAC/50 to 60 Hz (Auto switching)
|
|
Power consumption
|
160 VA max.
|
|
Operating environment
|
Temperature: +10ºC to +35ºC
|
|
Humidity: 35 % to 75 % (non-condensing)
|
|
Guaranteed accuracy environment
|
Temperature: +16ºC to +32ºC
|
|
Humidity: 35 % to 70 % (non-condensing)
|
|
External dimensions (W x D x H)
including stand *5
|
1110 x 715 x 1210 mm
|
1260 x 715 x 1210 mm
|
1560 x 715 x 1210 mm
|
1860 x 715 x 1210 mm
|
2120 x 715 x 1210 mm
|
|
43.7 x 47.6 x 28.1 in
|
49.6 x 47.6 x 28.1 in
|
61.4 x 47.6 x 28.1 in
|
73.2 x 47.6 x 28.1 in
|
83.5 x 47.6 x 28.1 in
|
|
Weight
including stand
|
36 kg (79 lbs)
|
39 kg (86 lbs)
|
43 kg (95 lbs)
|
51 kg (112 lbs)
|
59 kg (130 lbs)
|
|
|
Compatible OS
|
Windows 2000/Windows XP/Windows Vista *6 Macintosh OS 9.X to 10.X
|
|
Certifications
|
UL, cUL, CE marking, RoHS
|
|
