Model |

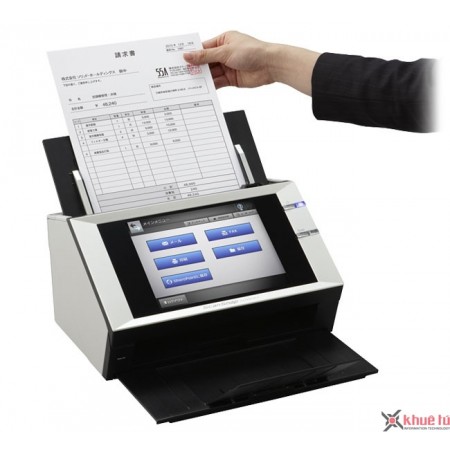

N1800 |
Functional Specifications |
Technology |
Dual Color Charge coupled device (CCD) image sensors |
Resolution |
150, 200, 300, 600 dpi |
Color |
24-bit single pass color, auto color detection |
Scanning speed |
Color |
Simplex: 20ppm (200dpi, 300dpi), Duplex: 40ipm (200dpi, 300dpi) |
Monochrome |
Scanning mode |
Color, monochrome, grayscale, auto color detection |
Image adjustments |
Brightness, contrast, dropout color, sharpness background removal |
Document feeding mode |
Automatic document feeder (ADF) |
ADF capacity |
50 Sheets (letter/A4, 20 lb.) |
Document size |
ADF minimum |
(A8) (2.1 in. x 2.9 in.) |
ADF maximum |
(Legal) (8.5 in. x 14 in.) |
Network protocols |
TCP/IP DHCP, SMTP, SMB, LDAP, NTP, FTP and HTTP |
Central admin server |
Windows 2000, 2003, 2008 Server Server required |
Network server auTDentication |
Windows 2000, 2003, 2008 Server or open LDAP |
Output meTDods |
TIFF, MTIFF, JPEG, PDF, searchable PDF's (English) |
Interface |
One network connection RJ45 10/100 base T |
Software Driver Support |
All software loaded on system (embedded) |
Physical Specifications |
Power requirements |
100-240 VAC, 50/60 Hz |
Power consumption |
50 W or less, Energy saving mode: 15 W or less |
Operating environment |
Temperature |
41° to 95° F (5° to 35° C) |
Relative humidity |
20% to 80% (non-condensing) |
Dimensions (WxDxH) |
11.8 in. (W) x 8.9 in. (D) x 6.8 in. (H) |
Weight |
13.23 lbs / 6 KG |
Environmental compatibility |
RoHS |
Automatic image processing |
Auto deskew, auto orientation, auto page size detection and blank page detection, color detection |
Security |
LDAP, LDAPS, FTPS, HTTPS |
Touch panel |
Screen size |
8.4 in. XGA (1024 x 768 pixel) TFT color monitor |
Type |
Analog resistive touch display |
Keyboard |
Software keyboard |
Limited Warranty |
One Year Limited Warranty. For full details, visit www.ImagingService.com or call (800) 626-4686. |
Service Options |
Post-Warranty — Basic, Advance Exchange and Depot; restrictions apply. Consumables — ScanAid™ kits For full details, visit www.ImagingService.com or call (800) 626-4686. |
Inbox Contents |
Network cable and power adapter |
Features |
Ultrasonic double feed detection, marker indexing via highlight pen, long document scanning and searchable and password protected PDF |
Part Number |
ScanSnap N1800 |
PA03609-B005 |
ScanAid |
CG01000-530501 |
