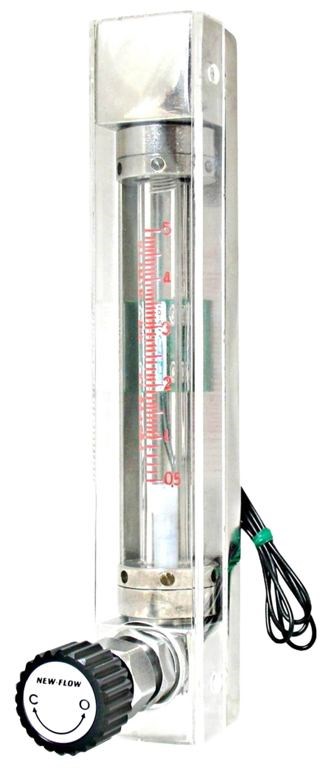

ĐỒNG HỒ ĐO LƯU LƯỢNG M-TYPE
Model : M-TYPE
Manufacture : NEW - FLOW
Measuring The Flow Rate For:
- Gases & Liquid
- Chemical process system
- Water treatment system
- Industrial flow system
Service Condition
- Viscosity :
- Max working temperature :100°C
- Max working pressure :
(1) Body material : MS: 15kg/cm²
MV: 6kg/cm²
(2)Glass tube : 6kg/cm², Instant pressure: 8kg/cm²
(3) P.C tube : 10kg/cm², Instant pressure: 15kg/cm
Alarm Switch Available (N.O), IP67
- Switch rating: AC 125V 0.5A / DC 100V 10W / Max, DC 250V<1mA
Accuracy: ±4%F,S
Operation Principle
The varialbe area flow meter content a float & taper tube.
The fluid flow through the taper tube and force up to the float.
The flow rate is measured as a function of the area of the opening. This area displayed as the float that is free to move to produce the varying area.
Range
|
H2O(Max.)
L/Min |
Air(Max.)
NL/Min |
Dimension |
| Size |
PT/NPT |
L |
H |
A |
C |
B |
| 6A |
0.03~0.3 |
0.5~50 |
1/4" |
168 |
110 |
25 |
145 |
75 |
| 10A |
0.1~1.0 |
2~20 |
3/8" |
168 |
110 |
25 |
145 |
75 |
| 15A |
1~1.0 |
20~200 |
1/2" |
242 |
165 |
32 |
210 |
100 |
| 20A |
2~2.0 |
30~300 |
3/4" |
290 |
220 |
42 |
240 |
140 |
| 25A |
5~5.0 |
80~800 |
1" |
295 |
230 |
46 |
250 |
140 |
Ordering infomation
| Code |
Model |
| MS |
Wetted parts are stainless steel |
| MV |
Wetted parts are plastic |
| Code |
Size |
| (1) |
6A |
| (2) |
10A |
| (3) |
15A |
| (4) |
20A |
| (5) |
25A |
| Code |
Connection Rating |
| (1) |
NPT |
| (2) |
PT |
| (3) |
option |
| Code |
Body Material |
| (1) |
SS304 |
| (2) |
SS316 |
| (3) |
SS316L |
| (4) |
P.V.C |
| (5) |
P.P |
| (6) |
PVDF |
| (7) |
Option |
| Code |
Indicating Tube Material
|
| (1) |
Glass |
| (2) |
PC |
| Code |
Float Material |
| (1) |
SS304 |
| (2) |
SS316 |
| (3) |
P.V.C |
| (4) |
P.P |
| (5) |
PVDF |
| (6) |
Teflon |
| (0) |
option |
| Code |
Seal Material |
| (1) |
NBR |
| (2) |
Viton |
| (3) |
Teflon |
| Code |
Protection Supporter Material
|
| (1) |
SS304 |
| (2) |
SS316 |
| Code |
Flow Range |
| L |
0.03~50 L/min for liquid |
| G |
0.5~800 NL/min for gases |
| Code |
Flow Direction |
| 1 |
Horizontal |
| 2 |
Vertical |
| Code |
Alarm Switch |
| 1R |
One setting point |
| 2R |
Two setting point |
| 0 |
Without alarm |
