I/O
|
Digital I/O points
|
10-input /6-output 14-input /10-output
20-input /12-output 24-input /16-output
32-input /32-output 40-input /40-output
|
10-input /6-output 14-input /10-output
16-input /14-output 24-input /16-output
36-input /24-output
|
Total number of supported I/O points
|
512
|
128
|
Max. number of special modules
|
8
|
4
|
High speed pulse output
|
2×100kHz (for transistor output only)
|
Single phase counting channel
|
6: 2(50kHz) + 4 (10kHz)
|
AB phase counting channel
|
2: 1 (30kHz) + 1 (5kHz)
|
Max. total frequency of high-speed counter
|
80kHz
|
60kHz
|
Digital filtering
|
X0 ~ X17
(Input filtering constant: 0 ~ 60ms)
|
X0 ~ X7
(Input filtering constant: 0, 8, 16, 32, 64ms)
|
Max. relay output current
|
Resistive load
|
2A/1 piont
8A/4-point-group common terminal
8A/8 point-group common terminal
|
Inductive load
|
220Vac, 80VA
|
Illumination
|
220Vac, 100W
|
Max. transistor output current
|
Resistive load
|
Y0, Y1: 0.3A/1 point
Others: 0.3A/1 point, 0.8A/4 points, 1.6A/8 points.
For each point above 8-point, the total current raises 0.1A.
|
Inductive load
|
Y0, Y1: 7.2W/24Vdc. Others: 12W/24Vdc
|
Illumination
|
Y0, Y1: 0.9W/24Vdc. Others: 1.5W/24Vdc
|
Registor
|
User program
|
12k steps (24kByte)
|
Memory hold upon power failure
|
Yes
|
Max. number of memory hold elements
|
User set (up to 200 C elements)
|
320 bit elements, or 180 word elements
|
Hardware support and sustainable period
|
Backup battery. Life span: 1 year.
|
EEPROM. Permanent
|
Elements
|
Timer
|
100ms precision: T0 ~ T209
10ms precision: T210 ~ T251
1ms precision: T252 ~ T255
|
Counter
|
16-bit up counter: C0 ~ C199
32-bit bi-directional counter: C200 ~ C235
32-bit high speed counter: C236 ~ C255
|
Data register
|
D0 ~ D7999
|
Local data register
|
V0 ~ V63
|
Offset addressing register
|
Z0 ~ Z15
|
Special data register
|
SD0 ~ SD255
|
Auxiliary relay
|
M0 ~ M1999
|
M0 ~ M2047
|
Local auxiliary relay
|
LM0 ~ LM63
|
Special auxiliary relay
|
SM0 ~ SM255
|
State relay
|
S0 ~ S991
|
S0 ~ S1023
|
Interrupt
|
Internal timed interrupt
|
3
|
3
|
External interrupt
|
8
|
16
|
High-speed counter interrupt
|
6
|
6
|
Serial port interrupt
|
|
8
|
PTO output complete interrupt
|
|
2
|
Power failure interrupt
|
|
1
|
General
|
Basic instruction processing time
|
0.09µS
|
0.3µS
|
Real time clock
|
Yes
(power-failure memory-hold time: >1 year)
|
Yes
(power-failure memory-hold time: 100 hs)
|
Analog potentiometer
|
2 (precision: 8-bit)
|
2 (precision: 8-bit)
|
Communication
|
Ports
|
PORT0: RS-232
PORT1: RS-232/RS-485
|
Protocol
|
Modbus, Free port, Programming port
|
Modbus, Free port, N:N bus, Programming port
|
Access control and user program protection
|
Password type
|
Upload, download, monitoring
|
Upload, download, monitoring, subprogram, formatting enabling
|
Upload disabling
|
Yes
|
Yes
|
MTBF
|
Relay output
|
200,000 hs (ground-fixed, minimum mechanical stress and temp./humidity control)
|
100,000 hs (ground-fixed, minimum mechanical stress & no temp./humidity control)
|
Transistor output
|
300,000 hs (ground-fixed, minimum mechanical stress and temp./humidity control)
|
150,000 hs (minimummechanical stress and no temp./humidity control)
|
Life span of output relay contacts
|
220Vac/15VA/inductive
|
1s ON / 1s OFF, 3,200,000 times
|
220Vac/30VA/ inductive
|
1s ON / 1s OFF, 1,200,000 times
|
220Vac/72VA/ inductive
|
1s ON / 1s OFF, 300,000 times
|
Power supply
|
Input voltage range
|
90Vac ~ 264Vac (for normal operation)
|
85Vac ~ 264Vac (for normal operation)
|
Note:

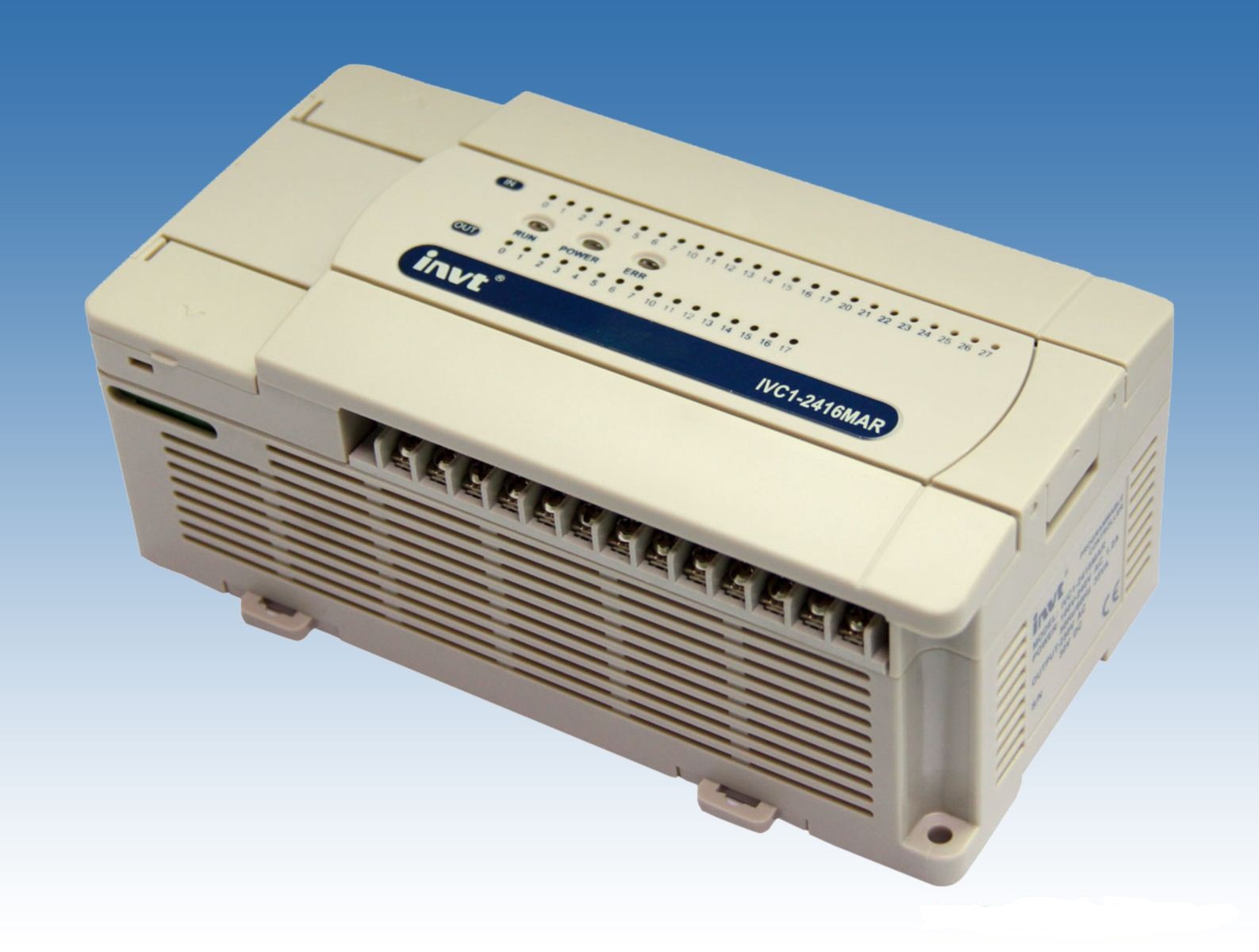

See IVC1 Series PLC User Manual for the speicifcation, installation instruction, operation and maintenance of IVC1 series PLCs.
See IVC2 Series PLC User Manual for the speicifcation, installation instruction, operation and maintenance of IVC2 series PLCs. |
